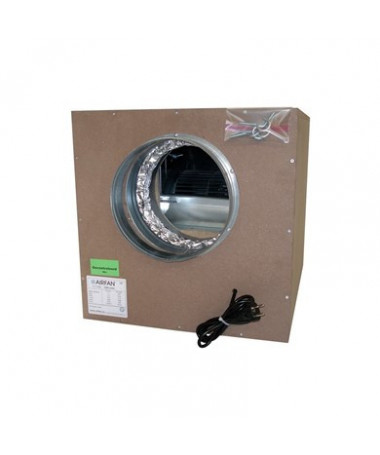

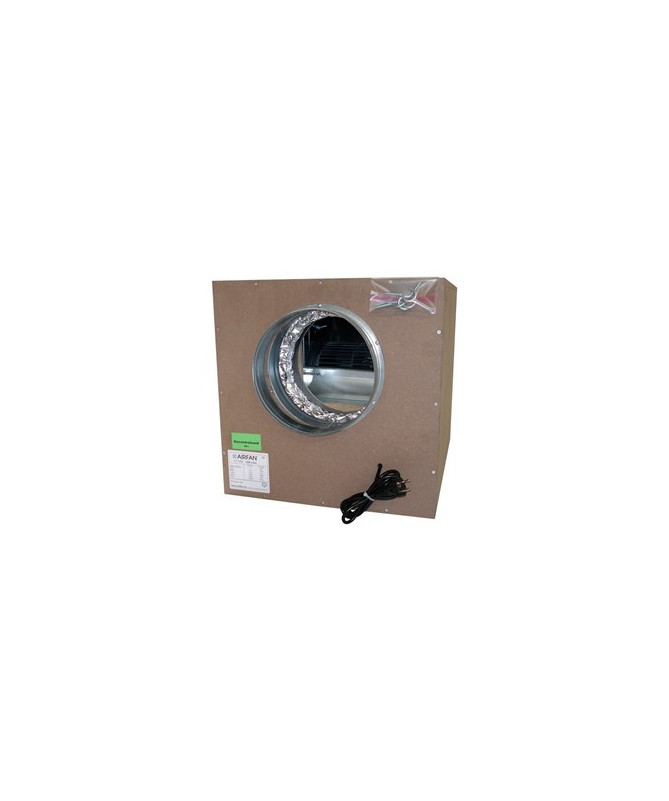

RADIAL VENTILATOR SOFT-BOX 2000 EU fi 250

SoftBox fan - muted is the quietest solution for ventilating rooms on the market.
SoftBox series - has a soft motor suspension, which eliminates motor vibrations transmitted to the housing. The fan motor is cushioned ( suspended on rubber shock absorbers ), so that it works even quieter, while eliminating vibrations transmitted to the entire box.

Features:

• Constructed of high compression MDF.
• The airtight box housing gives the assurance of a strong draught, without pressure loss.
• Created to work with carbon filters.
• In addition, the entire interior is lined with sound-absorbing foam
• .
• Such foams are used in recording studios.
• Extrusion side connected by a high-quality ventilation duct that guarantees tightness and durability.
• The fan motor is cushioned, suspended on rubber shock absorbers.
• A radial fan characterized by high operating pressure and very quiet operation is used.
• The construction of the box gives the assurance of a strong draught, without pressure losses
• .

Connection holes:

Inlet: Ø 250 mm x 1 pc.
Outlet: Ø 250 mm x 1 pc

Technical data:

• Voltage [V/50HZ] 1-230
• Power consumption : 414-600W
• Amperage [A] 1.7
• Maximum capacity : 2000m³/h
RPM
• [
RPM
• max]
• Inlet
• [
• mm] Ø 250mm x
1
• Outlet
[mm] Ø 250mm x 1
• Maximum operating temperature [0C] -30...+70
• Protection standard IP 44
• No wiring required - plug and play!
• Dimensions: 45cm x 45cm x 45cm ( without flange)
