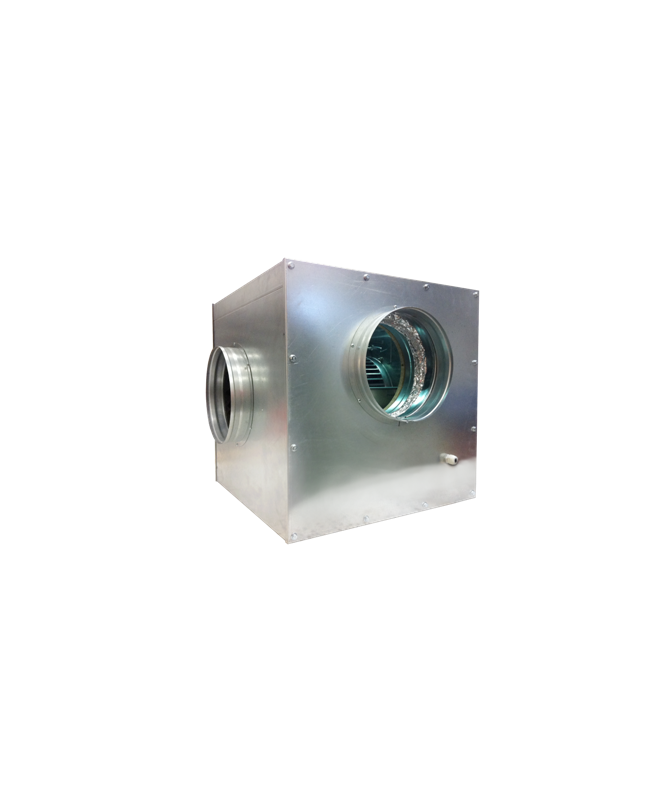

RADIAL FAN SOFT-BOX STEEL 750 EU fi200

SOFT BOX STEEL fan is the quietest solution for ventilating rooms.

SoftBox fan - muted is the quietest solution for ventilating rooms on the market.
SoftBox series - has a soft motor suspension, which eliminates motor vibrations transmitted to the housing. The fan motor is cushioned ( suspended on rubber shock absorbers ), so that it works even quieter, while eliminating vibrations transmitted to the entire box.

Features:

• Steel construction.
• Sealed box housing gives the assurance of a strong draught, without pressure loss.
• Created to work with carbon filters.
• In addition, the entire interior is lined
• with
• sound-absorbing foam
• .
• Such foams are used in recording studios.
• Extrusion side connected by a high-quality ventilation duct that guarantees tightness and durability.
• The fan motor is cushioned, suspended on rubber shock absorbers.
• A radial fan characterized by high operating pressure and very quiet operation is used.
• The construction of the box gives the assurance of a strong draught, without pressure losses
• .

Connection holes:

Inlet: Ø 200 mm x 1 pc.
Outlet: Ø 200 mm x 1 pc

Technical data:

• Voltage [V/50HZ] 1-230
• Power consumption : 160-330W
• Amperage [A] : 1.2
• Maximum capacity : 750m³/h
• Sound intensity: 24dB
RPM
• [
RPM
• max]
• Inlet
• [
• mm] Ø 200mm x 1
• Outlet
[mm] Ø 200mm x 1
• Maximum operating temperature [0C] -30...+70
• Protection standard IP 44
• No wiring required - plug and play!
• Dimensions: 35cm x 35cm x 35cm ( without flange)
