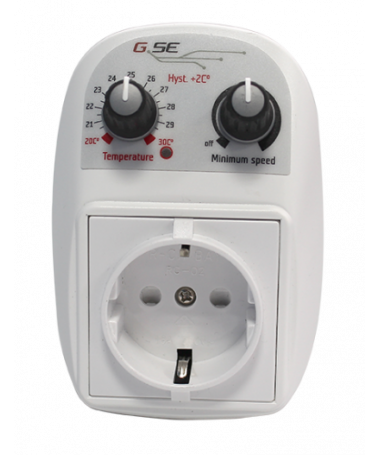

G-SE CONTROLLER & REG. TEMP. AND FAN SPEED

GSE 1150W/5A temperature and speed controller for 1 fan.

Automatically maintains a constant temperature in the growing room.
RPM controller for fans, adjusts the speed according to the measured temperature.

Functions:

• Temperature threshold control.
• Fan speed/speed control.

Specifications:

• Convenient way to plug in the fan, the socket located on the controller.
• Sensor for temperature measurement on 4 m cable
• Voltage
• :
• 230V / 50Hz
• Max. load
:
• 1150W / 5A
• Temperature control range:
• 20 °C - 30 °C
• Fan speed range: off, 20% - 100%
• Hysteresis ( accuracy ): 2°C
• Dimensions: 75 x 110 x 90 mm.
• Degree of protection: IP20

To learn the principle of operation of the controller, please read the detailed description below.

This controller is a digital, temperature-dependent ventilation speed controller for fans that extract as well as inject air.

It works on the principle of changing the fan output when the temperature exceeds a designated point by 2 °C. When the temperature is too high, the controller will accelerate the speed of the fan blades, when the temperature stabilizes at the level we want, the fan will return to the predetermined speed. The sensor included in the kit has a cable of 4 m, if it was insufficient it can be extended to 50 m, with special attention when removing the old cable, installing the new cable as well as the first start-up because incorrect installation can damage the components of the device.

Remember not to place the sensor too close to heat or light sources, as this may affect the measurement errors and incorrect set parameters.
