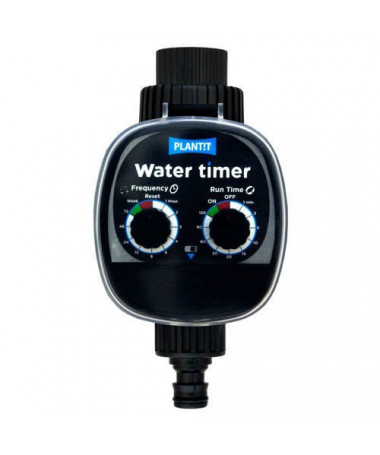

Plant!t Water Timer - irrigation programmer/controller.

PLANT!T® Water Timer Irrigation Controller - for connection directly to water mains or gravity systems.

Water Timer - Irrigation Controller. Can be used connected directly to water from the water supply or to gravity systems from a reservoir. The easy-to-use controller allows you to automate the operation of hose-end mounted sprinklers, drip irrigation systems and more to increase the consistency of your feeding schedules. Along with unparalleled reliability when used outdoors throughout the season, this professional controller offers features for convenient irrigation without any hassle. Its advantage is simple operation.

Just choose at what intervals you want it to dispense irrigation and for what duration, and the controller will do the rest. It is ideal for watering gardens, lawns, shrubs, pots, hanging baskets, terrace irrigation, roof gardens, watering for vacations, vacations. It is resistant to weather conditions. It has a safety valve that automatically shuts off when the battery charge is low. The controller also has a program delay button we use it when we need to do maintenance and other work.

How to do it ? It's simple, turn the RUN TIME knob to the desired irrigation duration, then set the second FRAQUENCY knob, which is the irrigation frequency.

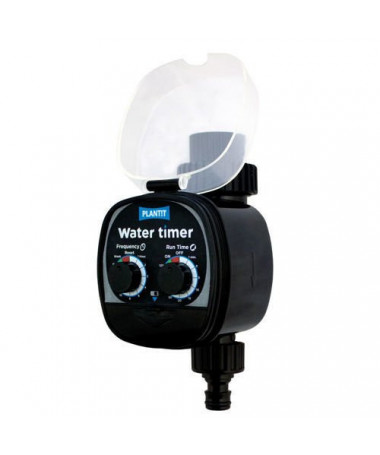

The Water Timer is highly weatherproof, the dial numerator completely covered. Powered by two 1.5V AAA alkaline batteries ( not included ), low power requirements ( all season, minimum run time without changing batteries ).

Technical data:

Designed for outdoor use with cold water only.

Working pressure of water: 0 - 150 PSI / 0 - 10 bar

Operating temperature: protect from freezing - maximum temperature: 43 °C

Connection: ¾ male / female tap connector / hose ( includes required connectors )

Inlet with F 3/4" female thread

Outlet with M 3/4" male thread

Dimensions: 11 x 10 x 16.5 cm

Water Timer Settings:

Frequency: you can choose settings every 1, 2, 3, 4, 6, 8, 12, 24, 48, 72 hours, 1 week

Operating time: 1, 3, 5, 10, 15, 20, 30, 60, 90 or 120 minutes

Specifications :

PLANT!T Water timer Battery installation in the unit Remove the front battery cover and install two 1.5 v AAA alkaline batteries. The batteries MUST be alkaline. Do not use rechargeable batteries.

Test the controller by moving the knob to the ON position. The delay will last from 1-5 seconds. After this time, the valve will open. The battery light will flash when the battery is in good condition. When the battery level is low. the battery light will remain on and the valve will automatically turn off. When the battery is completely depleted, the battery light will turn off. Replace the battery at the beginning of each season.

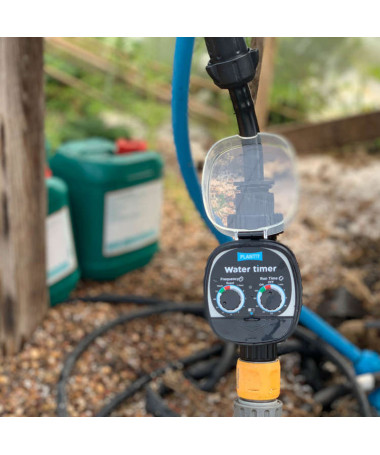

PLANT!T Water timer Installation The PLANTI� Irrigation controller can be used when irrigating with tap water, a gravity irrigation system or from a reservoir. To fit to the faucet, loosen the lock nut so that it can rotate freely, and then connect the timer by attaching the catch nut to the faucet.

Now tighten the lock nut by hand. Do not tighten with tools, it may cause damage. When mounting to the water tank, use the instructions in the illustration Mount to the tank using the nut provided. Connect the end of the programmer with a 13mm quick coupler or fitting and connect to the 13mm irrigation tubing (not included). Then you can make any arrangement of the irrigation device based on the 13mm main tube (inner diameter)

Programming

1. set the FREQUENCY programmer to the required cycle period, from 1 to 72 hours. set the dial to WEEK once a week once a week 2. Set the RUN TIME programmer to the desired number of hours from one to 120 minutes. The unit will not start until the next period begins. 3. write down the device's programming date, frequency and "RUN TIME" programmer settings for your information. 4. put the protective cover back on after programming the device. 5. you can delay the time in which the program runs the device using the "TIME DELAY" function. Using a pen or something thin, press the "TIME DELAY" button for each hour for which you want to delay irrigation in hourly intervals up to a maximum of 12 hours. If you want a new cycle to start in 3 hours, set the timer and then press the "TIME DELAY" button 3 times Note PLANT!T irrigation controller, ... starts keeping time immediately after setting. For example, if you want the timer to turn on at 7 a.m., you must physically set the operating time at that time of day You can delay this initial setup time , up to 2 hours, using the "TIME DELAY" button, so if it is 7 a.m. and you want the unit to start its program at 10 a.m., you press the "TIME DELAY" button 3 times for a 3 hour delay (see above).You can change the settings at any time, which will reset the device. Use only with cold water

Manual control You can ON and OFF the irrigation controller manually by turning the "RUN TIME" knob to the OFF position to suspend the current program without interrupting the set frequency. Turn the "RUN TIME" knob to the ON position to start irrigation, and to stop to OFF to stop. Set the knob back to the desired RUN TIME to continue the current program

If the irrigation controller will not be used for a long time, remove the batteries and store the unit in a dry place

Troubleshooting If there is no water flow check: 1 Make sure the water supply is turned on 2 Check that the battery is in good condition and properly installed 3 Check that the frequency, and run time are the same as noted 4 Make sure the "FREQUENCY" setting is longer than the "RUN TIME" setting. For example, you cannot set the FREQUENCY to a setting of 1 hour and set the WORK TIME to more than 60 minutes 5

Protect the unit and its parts from freezing. At the end of the season and before the first frost, unplug and store the timer in a dry place. The timer is waterproof ... but not waterproof; do not set the timer in a place where it will be submerged in water. It is best to install the timer above the ground. The timer has holes that remove moisture, so the drain holes can work freely.
