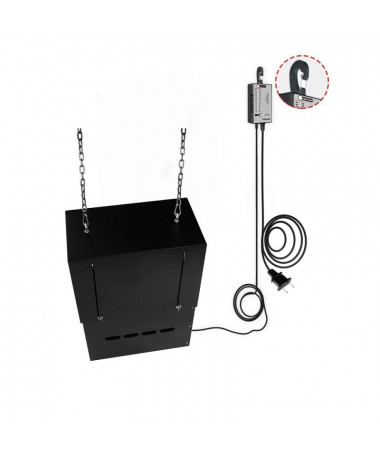

TROLMASTER MCG-8 CO2 GENERATOR+CONTROLLER

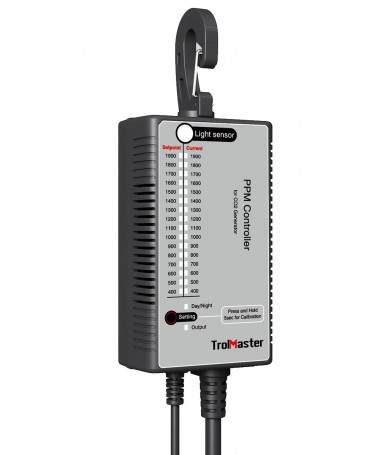

MCG-8 CO2 Generator with CO2 Controller:

Offers the most efficient and cost-effective method of increasing carbon dioxide (CO2) levels. Our experienced engineers have designed 8 burners in the CO2 generator that are not only reliable, but have an impressive list of safety features that give every grower peace of mind that they are using the safest and best products available on the market today.

• GEN-4's advanced "2-stage" electronic module eliminates open pilot flames and ensures proper operation.
• MCG-8 dual solenoid valves provide complete redundancy through gas control.
• Features an MCG-8 tip or "tilt switch" function that immediately shuts off gas flow if the unit is not upright
. The MCG-8'
• s multiple heat shields provide additional protection for key components.
• The MCG-8 generator uses clean precision-milled burners for assembly and components of only the highest quality components.
• Our generators are individually tested for tightness to ensure reliability
.
• In addition, various quality checks are performed and each unit is validated by highly qualified QA personnel.

For the first stage of growth, the recommended CO2 level is 600-700 ppm.

At the second stage, the amount of carbon dioxide fed can be increased to 900 ppm.

During the yield period, the concentration can be raised to 1200 ppm. The amount of CO2 fed is best modified depending on the date of cultivation.

Specifications:
-power supply: 400 mA at 24 VDC
-burners / material: 8 precision burners made of brass
-power per hour: 5.28kW
-recommended gas pressure : 1.15kPa
-weight: 9.9kg
-dimensions: 211 x511x364mm
-capacity : 0.6m3 CO2 per hour
-maximum working space : 226m3

Features:
-real-time co2 monitoring and measurement
-automatic start/stop
-precise digital reading of CO2 level
-Day/Night sensor
-position sensor - if the unit turns over, it will shut down
-flame sensor

A propane butane cylinder will be required for operation.
